Bell 206 Rotor Head CAD Model

Bell 206 Rotor Head helicopter CAD model for Civil 3D. Detailed 3D rotor system with accurate geometry for drafting, visualization and engineering workflows. Ideal for scene modeling, animations and helicopter configuration studies. Download and use in Civil 3D projects.

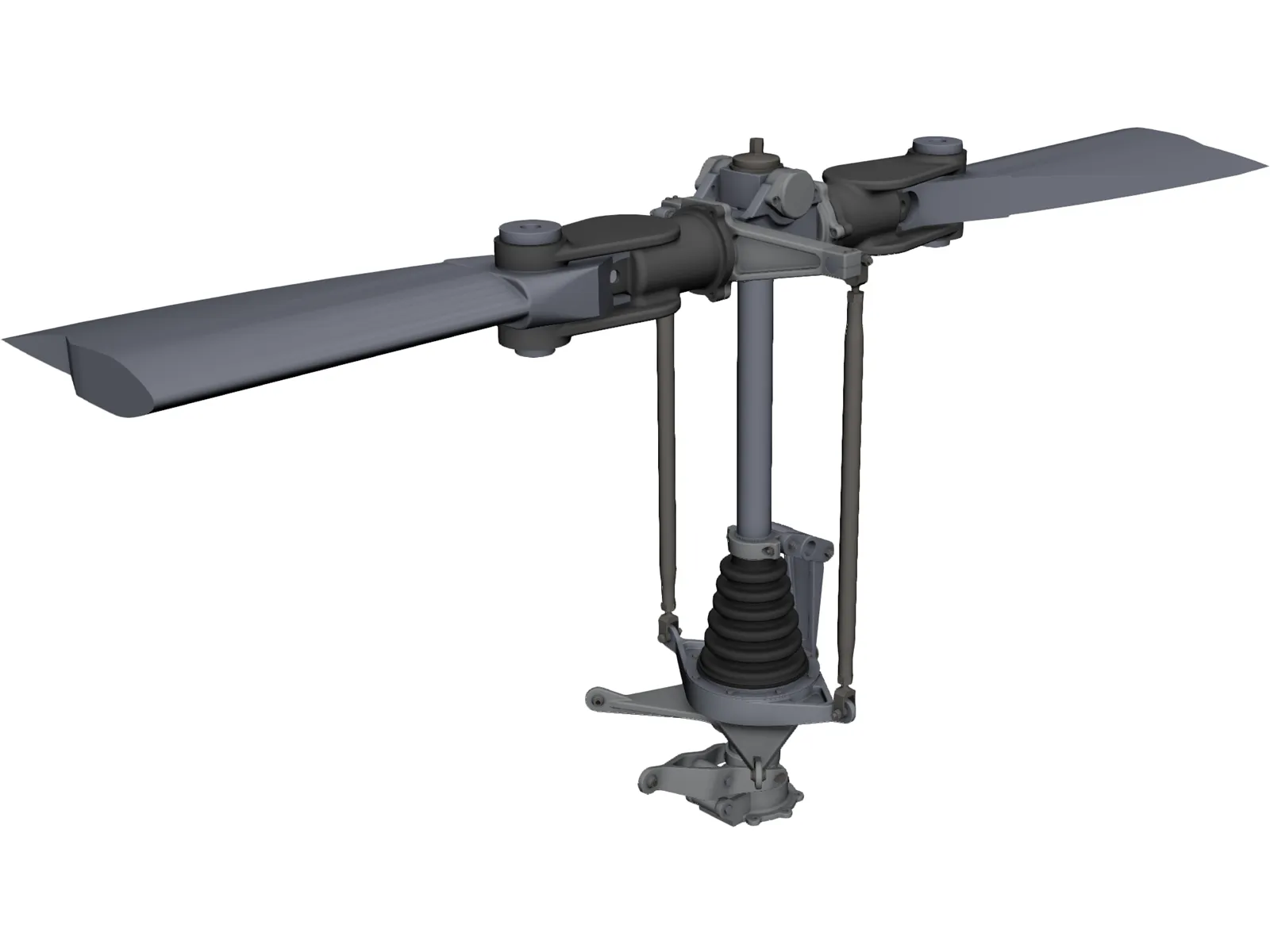

Bell 206 Rotor Head 3D Model main preview

Overview

Download the Bell 206 Rotor Head CAD Model available in STEP and IGES CAD file formats. Converted polygonal versions also available in MAX, FBX, OBJ, BLEND, C4D file formats.

This solid CAD 3d model compatible with AutoCAD, SolidWorks, Inventor, Pro/Engineer, Siemens NX, PTC Creo, Fusion 360, Solid Edge, CATIA, ACIS and other CAD/CAM/CAE packages. Converted versions compatible with 3ds Max, Maya, Blender, Cinema 4D, Unreal Engine, Unity, Lightwave, Softimage, SketchUp, and other 3D modeling, animation, game design and AR/VR packages.

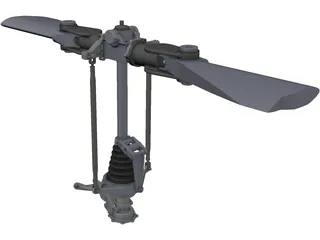

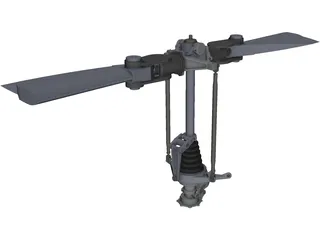

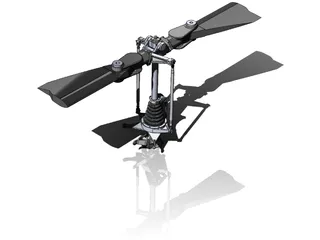

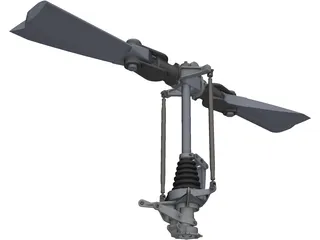

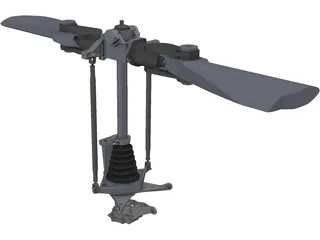

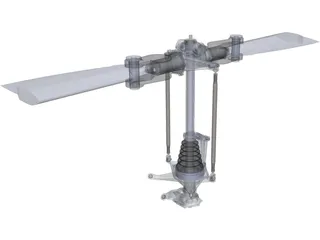

BELL 206 rotor head assembly with swash plate, pitch links, mast, hub and blades.

Uploaded by pavel r on March 2020

License

Royalty-Free License.
Commercial and editorial use according to site license terms.
Redistribution of source files is not allowed.
Please review the full license details before using the model in published work.
